| Brand | Oppo |

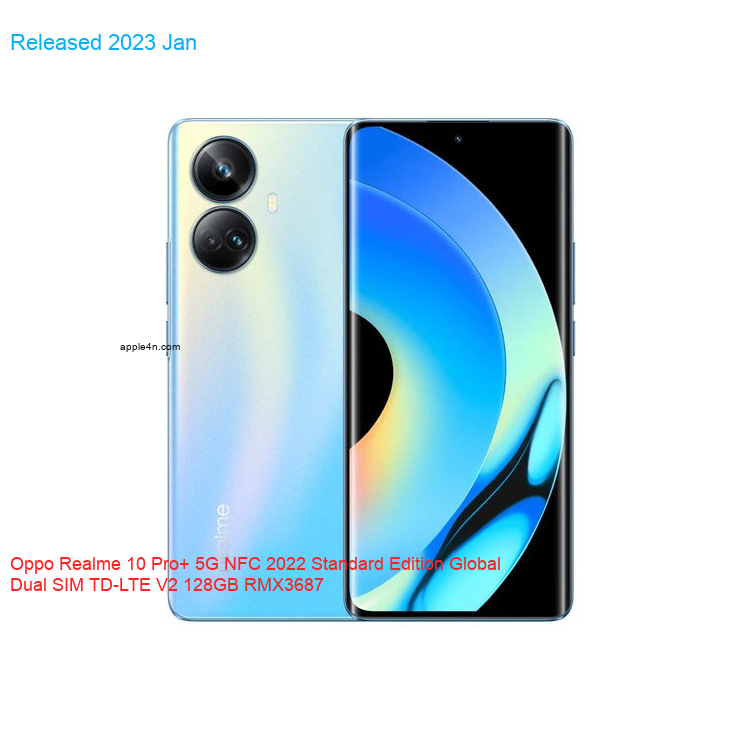

| Model | Realme 10 Pro+ 5G NFC 2022 Standard Edition Global Dual SIM TD-LTE V2 128GB RMX3687 |
| Released | 2023 Jan |
| Announced | 2022 Dec |
| Hardware Designer | Oppo |
| Manufacturer | BBK Electronics |
| Codename | BBK R3686B |
| General Extras | Haptic touch feedback , Tactile touch feedback |
| Device Category | Smartphone |
| Width | 73.9 mm |
| Height | 161.5 mm |
| Depth | 7.78 mm |
| Dimensions | 2.91×6.36×0.31 inches |
| Mass | 172.5 g |
| Platform | Android |
| Operating System | Google Android 13 (Tiramisu) |
| Software Extras | Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Face Recognition |
| CPU Clock | 2500 MHz |
| CPU | MediaTek Dimensity 920 MT6877V/TZA, 2022, 64 bit, octa-core, 2048 Kbyte L3, 6 nm, ARM Mail-G68 GPU |
| RAM Type | LPDDR4x SDRAM |
| RAM Capacity (converted) | 6 GiB RAM |
| Non-volatile Memory Interface | UFS 2.1 |
| Non-volatile Memory Capacity (converted) | 128 GB ROM |
| Display Hole | 1-hole |
| Display Diagonal | 170.2 mm |
| Resolution | 1080×2412 |
| Horizontal Full Bezel Width | 4.35 mm |
| Display Area Utilization | 90.5% |
| Pixel Density | 394 PPI |
| Display Type | AM-OLED display |
| Number of Display Scales | 1073.7M |
| Display Refresh Rate | 120 Hz |
| Scratch Resistant Screen | Yes |
| Graphical Controller | ARM Mali-G68MP4 |
| GPU Clock: | 800 MHz |
| A/V Out | No |
| Audio Controller | MediaTek MT6365 |
| Microphone(s) | stereo |
| Loudspeaker(s): | stereo |
| Audio Output: | USB Type-C |
| Supported Cellular Bands | GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS800 (B6) , UMTS900 (B8) , UMTS800 (B19) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B13) , LTE700 (B17) , LTE800 (B18) , LTE800 (B19) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , LTE1700/2100 (B66) , NR2100 (N1) , NR1800 (N3) , NR850 (N5) , NR2600 (N7) , NR900 (N8) , NR800 (N20) , NR700 (N28) , TD-NR2600 (N38) , TD-NR2300 (N40) , TD-NR2500 (N41) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) bands |
| Supported Cellular Data Links | GPRS , EDGE , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , HSPA+ 42.2 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 450/50 , LTE 600/50 , NR 1500 , NR 2600 , NR 3700 data links |
| SIM Card Slot | Nano-SIM (4FF) |
| Complementary Phone Services | Voice transmission , Voice speaker , Vibrate , Speakerphone , ANC , HD Voice , VoLTE |
| Dual Cellular Network Operation | Dual standby |
| Sec. Supported Cellular Networks: | GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS800 (B6) , UMTS900 (B8) , UMTS800 (B19) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B13) , LTE700 (B17) , LTE800 (B18) , LTE800 (B19) , LTE800 (B20) , LTE850 (B26) , LTE700 (B28) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , LTE1700/2100 (B66) , NR2100 (N1) , NR1800 (N3) , NR850 (N5) , NR2600 (N7) , NR900 (N8) , NR800 (N20) , NR700 (N28) , TD-NR2600 (N38) , TD-NR2300 (N40) , TD-NR2500 (N41) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) |
| Sec. Supported Cellular Data Links: | GPRS , EDGE , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , HSPA+ 42.2 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 450/50 , LTE 600/50 , NR 1500 , NR 2600 , NR 3700 |
| Sec. SIM Card Slot | Nano-SIM (4FF) |
| Touchscreen Type | Capacitive multi-touch screen |
| Expansion Interfaces | No |
| USB | USB 2.0 |
| USB Services | USB charging , USB fast charging , USB Host , USB OTG 1.3 , USB OTG 2.0 , USB PD , USB PD 2.0 , USB PD 3.0 |
| USB Connector | USB C reversible |
| Max. Charging Power | 67.0 W |
| Bluetooth | Bluetooth 5.2 |
| Wireless LAN | 802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , 802.11ax |
| Wireless Services | Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling |
| NFC | NFC A , NFC B |
| FM Radio Receiver | No |
| Complementary Satellite Services | Simultaneous GPS , A-GPS , Dual-frequency GPS , Geotagging , QuickGPS , QZSS |
| Supported GLONASS protocol(s) | L1OF |
| Supported Galileo service(s) | E1 |
| Supported BeiDou system (BDS) | B1I BeiDou receiver |
| Camera Placement | Rear |
| Camera Image Sensor | BSI CMOS |
| Image Sensor Pixel Size | 0.64 micrometer |
| Number of effective pixels | 108.0 MP camera |
| Aperture (W) | f/1.75 |
| Zoom | 1.0 x optical zoom |
| Focus | PD AF |
| Min. Equiv. Focal Length | 23.6 mm |
| Video Recording | 3840×2160 pixel |
| Flash | single LED |
| Camera Extra Functions | EIS , EIS (video) , Pixel unification , HDR photo , HDR video , Red-eye reduction , Slow motion video , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Intelligent scene detection |
| Aux. Camera Image Sensor | BSI CMOS |
| Aux. Cam. Image Sensor Pixel Size | 1.12 micrometer |
| Aux. Camera Number of Pixels | 8.0 MP aux. cam |
| Aux. Camera Aperture (W) | f/2.20 |
| Aux. Cam. Min. Equiv. Focal Length | 15.8 mm |
| Aux. 2 Camera Image Sensor | CMOS |
| Aux. 2 Camera Number of Pixels | 1.9 MP aux. 2 cam |
| Aux. 2 Camera Aperture (W) | f/2.40 |
| Aux. 2 Cam. Min. Equiv. Focal Length | 21.88 mm |
| Aux. 3 Camera Image Sensor | No |
| Aux. 4 Camera Image Sensor | No |
| Secondary Camera Placement | Front |
| Secondary Camera Sensor | BSI CMOS |
| Secondary Camera Number of pixels | 16.2 MP sec. cam |
| Secondary Aperture (W) | f/2.45 |
| Secondary Video Recording | 3840×2160 pixel |
| Secondary Camera Extra Functions | EIS , EIS (video) , Pixel unification , HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Intelligent scene detection |
| Sec. Aux. Cam. Image Sensor | No |
| Built-in compass | Yes |
| Built-in accelerometer | 3D accelerometer |
| Built-in gyroscope | 3D gyro |
| Additional sensors | In-screen FP sensor , L sensor , P sensor |
| Protection from solid materials | Yes |
| Protection from liquids | Yes |
| Protection against mechanical impacts | 150 cm |
| Battery | Li-ion polymer (LiPo) |
| Nominal Battery Voltage | 3.87 Volts |
| Nominal Battery Capacity | 5000 mAh battery |
| Nominal Battery Energy | 19.35 Wh |
| Market Countries | Brazil , Malaysia , Philippines , Turkey , Ukraine |
| Market Regions | Asia , Eastern Europe , Europe , Middle East , Oceania , Southeast Asia |
| Added | 2024-06-08 |
Specifications data description of this 📱Oppo Realme 10 Pro+ 5G NFC 2022 Standard Edition Global Dual SIM TD-LTE V2 128GB RMX3687📱
Title: The Ultimate Guide to Understanding the Specification of the Device 🌐📅🏋️🌈🤖🛠️🚀🔧💪🖥️🎮🧠🗂️📷🎥🔈📡📶💡🔋🔌
Introduction:
Welcome to our comprehensive guide on understanding the specification of the device. In this post, we will delve into the nitty-gritty of the device’s specifications, including its network capabilities, launch date, body design, display, operating system, chipset, CPU, GPU, memory, camera, sound, communication, features, battery, and more. So, buckle up and get ready for a deep dive into the world of device specifications!
Lineup:
The device comes in various models, each with unique specifications tailored to meet different user needs. Whether you are a heavy user who requires a device with powerful CPU and GPU, a photography enthusiast who prioritizes camera quality, or a budget-conscious user looking for a device with excellent value for money, the device has got you covered.
Design:
The device boasts of a sleek and stylish design, with a slim profile that makes it comfortable to hold and use for extended periods. It is available in various colors, allowing you to choose one that matches your style and preferences.
Specifications:
– Network: The device supports various network technologies, including 4G LTE, 3G, and 2G, ensuring that you stay connected irrespective of your location.
– Launch: 📅 The device was launched on [insert launch date].
– Body: The device’s body is made of premium materials, contributing to its durability and elegance. It has a dimension of [insert dimensions] and weighs [insert weight].
– Display: The device features a [insert size] display with a [insert resolution] resolution, providing sharp and vibrant visuals. It also has a [insert refresh rate] refresh rate, ensuring smooth scrolling and viewing of multimedia content.
– Operating System: The device runs on [insert operating system], providing a seamless and intuitive user experience.
– Chipset: The device is powered by a [insert chipset] chipset, which is designed to deliver fast and efficient performance.
– CPU: The device’s CPU is a [insert number of cores] core [insert speed] GHz processor, providing fast and efficient processing of applications and multitasking.
– GPU: The device features a [insert GPU] GPU, which provides excellent graphics performance, making it ideal for gaming and multimedia consumption.
– Memory: The device has [insert memory size] of RAM, ensuring smooth multitasking and fast application launches.
– Camera: The device features a [insert number of cameras] camera setup, with [insert megapixel count] megapixels on the primary camera. The camera features include [insert camera features], making it ideal for photography enthusiasts.
– Sound: The device features stereo speakers that provide excellent sound quality, making it ideal for multimedia consumption.
– Communication: The device supports various communication technologies, including Wi-Fi, Bluetooth, GPS, and NFC.
– Features: The device comes with various features, including [insert features], providing added convenience and functionality.
– Battery: The device is powered by a [insert battery capacity] mAh battery, providing long-lasting battery life. It also supports fast charging, ensuring that you are always on the go.
Conclusion:
In conclusion, the device is a powerful and versatile device that offers excellent value for money. Its specifications make it an ideal choice for users who require a device that can handle heavy multitasking, gaming, and multimedia consumption. We invite you to leave a comment and share your thoughts on the device’s specifications.
