| Brand | Motorola |
| Model | Moto Edge+ 2022 5G 2nd gen TD-LTE US 128GB XT2201DL |
| Released | 2022 May |
| Announced | 2022 Feb 24 |
| Hardware Designer | Lenovo |
| Manufacturer | Lenovo |
| Codename | Motorola Hiphi |
| General Extras | Haptic touch feedback , Tactile touch feedback |
| Device Category | Smartphone |
| Width | 75.95 mm |
| Height | 163.06 mm |
| Depth | 8.79 mm |
| Dimensions | 2.99×6.42×0.35 inches |
| Mass | 196 g |
| Platform | Android |
| Operating System | Google Android 12 (S) |
| Software Extras | Voice Command , Navigation software , Intelligent personal assistant , Face Recognition |
| CPU Clock | 2995 MHz |
| CPU | Qualcomm Snapdragon 8 Gen 1 5G SM8450 (Waipio), 2021, 64 bit, octa-core, 6144 Kbyte L3, 4 nm, Qualcomm Adreno 730 GPU |
| RAM Type | LPDDR5 SDRAM |
| RAM Capacity (converted) | 8 GiB RAM |
| Non-volatile Memory Interface | UFS 3.1 |
| Non-volatile Memory Capacity (converted) | 128 GB ROM |
| Display Hole | 1-hole |
| Display Diagonal | 169.4 mm |
| Resolution | 1080×2400 |
| Horizontal Full Bezel Width | 6.43 mm |
| Display Area Utilization | 86.7% |
| Pixel Density | 395 PPI |
| Display Type | AM-OLED display |
| Number of Display Scales | 1073.7M |
| Display Refresh Rate | 144 Hz |
| Scratch Resistant Screen | Gorilla Glass 3 |
| Graphical Controller | Qualcomm Adreno 730 |
| A/V Out | DisplayPort |
| Microphone(s) | 3 |
| Loudspeaker(s): | stereo |
| Audio Output: | USB Type-C |
| Supported Cellular Bands | GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS900 (B8) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B13) , LTE700 (B14) , LTE700 (B17) , LTE800 (B20) , LTE1900 (B25) , LTE850 (B26) , LTE700 (B28) , LTE700 (B29) , LTE2300 (B30) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , TD-LTE5900 (B46) , TD-LTE3600 (B48) , LTE1700/2100 (B66) , LTE600 (B71) , NR1900 (N2) , NR850 (N5) , NR2600 (N7) , NR 700 (N12) , NR1900 (N25) , NR850 (N26) , NR700 (N29) , NR2300 (N30) , TD-NR2500 (N41) , TD-NR3600 (N48) , NR1700/2100 (N66) , NR600 (N71) , TD-NR3700 (N77) , TD-NR3500 (N78) bands |
| Supported Cellular Data Links | GPRS , GPRS MSC12 , EDGE , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 300/75 , LTE 300/100 , LTE 400/150 , LTE 450/50 , LTE 450/100 , LTE 600/50 , LTE 600/100 , LTE 2000/300 , NR 1500 , NR 2600 , NR 3700 data links |
| SIM Card Slot | Nano-SIM (4FF) |
| Complementary Phone Services | Voice transmission , Voice speaker , Vibrate , Speakerphone , ANC , HD Voice , VoLTE , ViLTE |
| Sec. Supported Cellular Networks: | No |
| Touchscreen Type | Capacitive multi-touch screen |
| Expansion Interfaces | No |
| USB | USB 3.0 / 3.1 Gen 1 / 3.2 Gen 1×1 |
| USB Services | USB charging , USB fast charging , USB Host , USB OTG 1.3 , USB OTG 2.0 , USB PD , USB PD 2.0 , USB PD 3.0 |
| USB Connector | USB C reversible |
| Max. Charging Power | 68.0 W |
| Bluetooth | Bluetooth 5.2 |
| Wireless LAN | 802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , 802.11ax |
| Wireless Services | Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling |
| NFC | NFC A , NFC B |
| FM Radio Receiver | No |
| Complementary Satellite Services | Simultaneous GPS , A-GPS , Dual-frequency GPS , Geotagging , QuickGPS , QZSS |
| Supported GLONASS protocol(s) | L1OF |
| Supported Galileo service(s) | E1 , E5a |
| Camera Placement | Rear |
| Camera Image Sensor | BSI CMOS |
| Image Sensor Pixel Size | 1.01 micrometer |
| Number of effective pixels | 50.3 MP camera |
| Aperture (W) | f/1.88 |
| Zoom | 1.0 x optical zoom |
| Focus | PD AF |
| Video Recording | 7680×4320 pixel |
| Flash | dual LED |
| Camera Extra Functions | EIS (video) , OIS , Pixel unification , HDR photo , HDR video , Red-eye reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Aux. Camera Image Sensor | BSI CMOS |
| Aux. Cam. Image Sensor Pixel Size | 0.64 micrometer |
| Aux. Camera Number of Pixels | 50.1 MP aux. cam |
| Aux. Camera Aperture (W) | f/2.20 |
| Aux. Camera Extra Functions | Pixel unification , HDR photo , HDR video , Red-eye reduction , Burst mode , Refocus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Aux. 2 Camera Image Sensor | CMOS |
| Aux. 2 Camera Number of Pixels | 1.9 MP aux. 2 cam |
| Aux. 2 Camera Aperture (W) | f/2.40 |
| Aux. 3 Camera Image Sensor | No |
| Aux. 4 Camera Image Sensor | No |
| Secondary Camera Placement | Front |
| Secondary Camera Sensor | BSI CMOS |
| Secondary Camera Number of pixels | 60.3 MP sec. cam |
| Secondary Aperture (W) | f/2.20 |
| Secondary Video Recording | 3840×2160 pixel |
| Secondary Camera Extra Functions | EIS , EIS (video) , Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection |
| Sec. Aux. Cam. Image Sensor | No |
| Built-in compass | Yes |
| Built-in accelerometer | 3D accelerometer |
| Built-in gyroscope | Yes |
| Additional sensors | FP sensor , L sensor , P sensor , Step counter |
| Protection from solid materials | 5 Protected against dust with limited ingress |
| Protection from liquids | 2 Protected against direct sprays up to 15 degrees from the vertical |
| Battery | Li-ion polymer (LiPo) |
| Battery Cells in Parallel | Yes |
| Nominal Battery Capacity | 4800 mAh battery |
| Wireless Charging | Qi |
| Max. Wireless Charging Power | 15.0 W |
| Market Countries | USA |
| Market Regions | North America |
| Mobile Operator | Straight Talk TracFone Wireless |
| Added | 2025-03-21 |

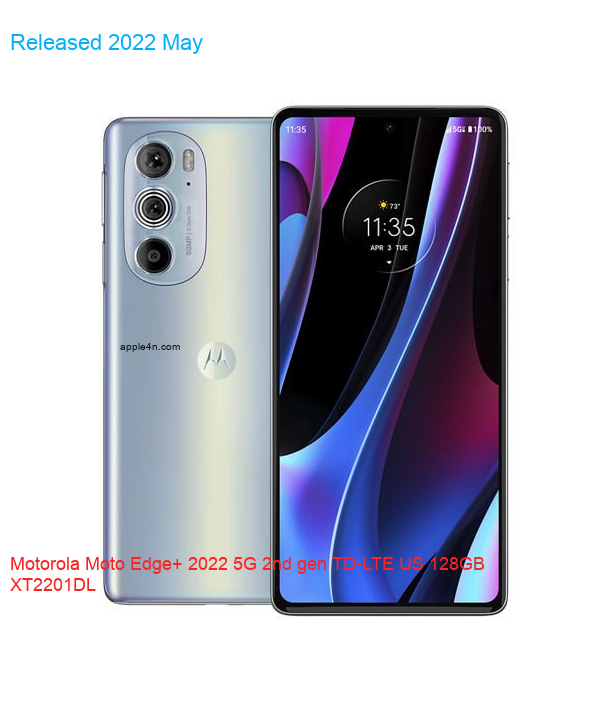

Motorola Moto Edge+ 2022 5G 2nd gen TD-LTE US 128GB XT2201DL
